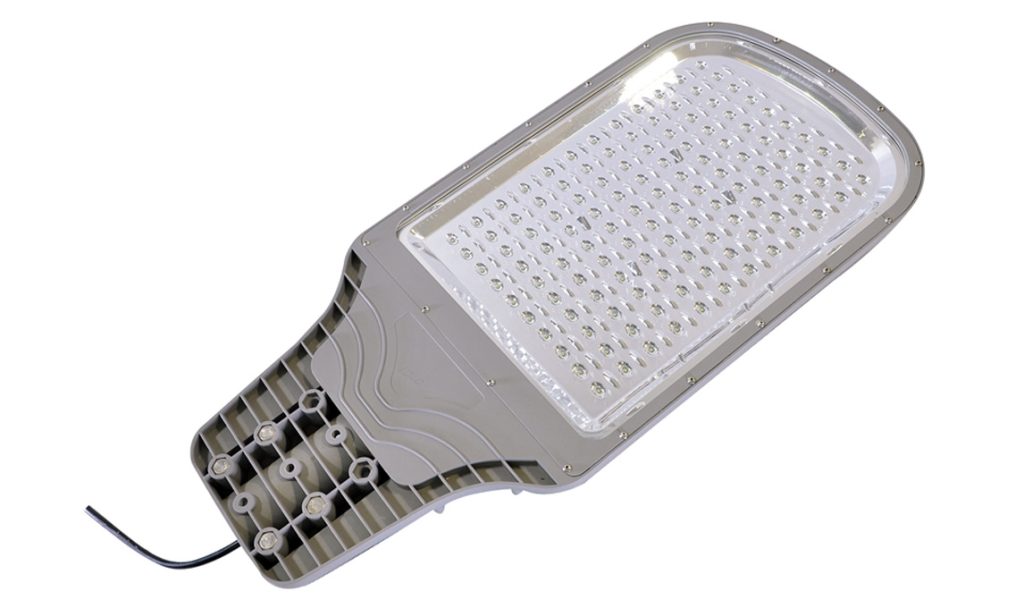

120W 150W 185W Explosion Proof Street Light – Class 1 Division 2 – Pole Mount

Manfaat Utama:

  • Chip LED SMD berkualitas tinggi dengan efisiensi tinggi dan penurunan rendah, hingga 140lm/W @350mA, umur pakai tercatat 100.000 jam.
  • Housing tempa yang mentransmisikan panas tinggi dengan aluminium ADC12, desain paten, perlindungan IP67.
  • Kaca tempered tahan guncangan dan getaran, transmisi cahaya super jernih 95%.
  • Anti-silau. Desain reflektor optik ilmiah, membuat cahaya lebih fokus, merata, nyaman bagi mata.
  • Penggerak seri Meanwell HLG, tingkat tertinggi penggerak Meanwell.
  • Perlakuan permukaan – Penyemprotan bedak dengan Epoxy Polyester, tahan garam dan tahan kimia, desain heat sink berbentuk busur paten, untuk mencegah debu menumpuk di permukaan.
  • PCB aluminium tebal 2.0mm dengan indeks panas 2.5, menjaga LED bekerja di bawah suhu normal.
  • Standar uji EMC, Distorsi harmonik total (THD) <10%, meminimalkan dampak terhadap sistem listrik.

Features

  • Efisiensi terdepan di industri: hingga 140 lm/W
  • Suhu operasi lingkungan: -40°C hingga +40°C
  • Optik lebar untuk pencahayaan merata
  • Garansi 5 tahun
  • Ukuran Masuk: NPT 3/4”-14
  • Casing – Paduan aluminium (ADC12)
  • Lensa – Kaca tempered
  • Sudut Pancaran Cahaya: 140° * 80°
  • Dimensi: 796x372x82mm
  • Berat: 14.5kg

Parameters

  •  Power: Max 120W / 150W / 185W
  •  Input voltage: AC100-240/277V, 50/60Hz
  •  Power factor: 0.97
  •  Light efficacy: 120 – 140lm/W
  •  CCT: 3000K/4000K/5000K/5700K/6500K
  •  LEDs: 3030
  •  LED Driver: Meanwell HLG series

Certificate & Standard

Memiliki sertifikat CES-L fixtures with the NEC and CEC standards for hazardous location and environments

  • Class I, Division 2, Groups A, B, C and D
  • T-Class: T5
  • Damp and wet locations
  • Certificate No：E475887

Mounting

Opsi Pemasangan Mounting:

  • Pole mount

How to install this explosion proof street light?

A.The mounting height around 12m (For example:150W), cantilever length of not more than a quarter of the mounting height , and the elevation should not exceed 15 °

B.Installation Step：

  • Place the lamp cord into the pole
  • Insert the lamp into the pole
  • Adjust the lamp direction and fix screw into lock position
  • Fixthe screw into lock position，the torque applied to the screw is 1.08 kg.m
  • The size of cavity inserted into the junction box should not be more than 80mm*40mm*40mm

Seal the gaps between the power driver lid and the plate tightly with silicone glue.
